Tunnel Plates

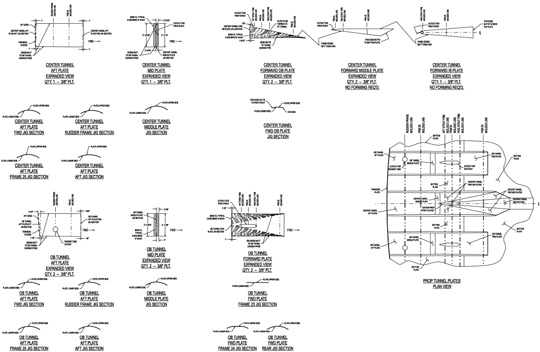

These are the exported shapes for plates in the prop tunnels. Frame locations, stiffener CLs, and bend CLs were included for Bay Marine’s use as fabrication references. These plate shapes were detailed for CNC cutting by Bay Marine. Note the plate bending jig sections included in this drawing, also exported from the computer model.
